Thursday, December 10, 2020

A Simple JSON Example

Question: How do I dump one row to a json file?

Answer: Here's an adhoc query that writes all the Foxhound 5 Monitor Options values for one target database to a json text file:

-- Start - Foxhound5 - 2 Adhoc Query via ISQL
SELECT REPLACE ( json_raw_table.json_raw_string, ',"', ',\X0D\X0A"' ) AS monitor_options_json
           FROM alerts_criteria
          WHERE alerts_criteria.criteria_set_type = 'Target Specific'
            AND alerts_criteria.sampling_id       = 13 -- Inventory17
            FOR JSON RAW
       ) AS json_raw_table ( json_raw_string )
TO 'C:\\temp\\monitor_options.json'

[{"criteria_set_type":"Target Specific",
"previous_gathered_sample_finished_at":"2020-12-10 08:28:08.609",
"current_sample_finished_at":"2020-12-10 08:28:08.609",
"alert1_in_effect_at":"2020-12-07 11:13:00.567",
"alert1_all_clear_at":"2020-12-08 07:48:11.438",

The docs are light on simple questions like this, perhaps because they lead to more simple questions...

How do I get SELECT FOR JSON output into a string?

Answer: Use a SELECT INTO clause, or a subquery.

How do I actually code SELECT FOR JSON in a subquery?

Answer: Code a derived table with an alias table name and a single alias column name, because the select list for SELECT * FOR JSON consists of one single column.

How do I get line breaks?

Answer: Use REPLACE, and hope your data doesn't contain any comma-doublequote pairs... or write better code than this example :)

Thursday, December 3, 2020

Foxhound 5 Giveth, Foxhound 5 Taketh Away

New Feature

The ADHOC user id can create procedures, functions, tables, indexes and views

If you like running adhoc queries on the Foxhound database, you'll love being able to CREATE your own procedures... and tables, and views, and functions.

For more information see What kind of adhoc queries can I write?

But . . .

Behavior Change: The ADHOC user id cannot be used in SQL Central to connect to the Foxhound database

You can use ISQL but not SQL Central; that door has been closed.

So . . .

Windows Start menu - Foxhound5 - 2 Adhoc Query via ISQL is your friend :)

Wednesday, December 2, 2020

Foxhound Shock! (Server Messages)

There's a new feature in Foxhound 5 that may come as a shock:

SQL Anywhere server messages are stored and displayed on the Monitor and History pages.

First, some background: Server messages appear in the SQL Anywhere console log, and in the dbsrv17.exe -o text file if you specify that option (you should).

Server messages are mostly boring "Information" messages

I. Database "ddd16" (ddd16.db) started at Wed Dec 02 2020 07:48
I. Finished checkpoint of "ddd16" (ddd16.db) at Wed Dec 02 2020 07:48

Some server messages are interesting

I. Database "ddd" mirroring:  becoming primary server

and some are very interesting

W. Database "ddd" mirroring:  Warning: Mirror is running behind the primary server by more than 60 seconds.
E. Database "ddd" mirroring:  mirror connection to server "partner2_server" failed

Foxhound 5 displays server messages as a convenience:

If you're going to the trouble of running Foxhound, why should you have to look somewhere else to see server messages?

But . . . server messages can be a bit of a surprise

. . . when you suddenly start seeing server messages in the Monitor page after upgrading Foxhound 5:

They can also be a SHOCK

If your application code or stored procedures contain MESSAGE TO CONSOLE statements,

  • and you are not in the habit of looking at the SQL Anywhere console log,

  • or you don't know where (or what) the SQL Anywhere console log is,
suddenly seeing a storm of MESSAGE TO CONSOLE output in the Foxhound Monitor page can be a shock.

Relax, you can turn off the storm

Just click on the little black gear (*) icon on one of the messages, and it'll take you directly to the Monitor Options page

In section 18. Server Messages, make sure you've selected the right target database,

  • then uncheck Display server messages on the Foxhound Monitor and Sample History pages

  • and click on Save.

But, maybe you don't want to

Server messages might be your friend :)

Monday, November 30, 2020

The Future Of SQL Anywhere

Here's a question that was asked today:

Question: In our company we are starting a new software project and I am in a dilemma about the database. Today we are using SQL Anywhere v17. But as I see it there is not much work going on on it. Is there any development on it? Could we expect a new version in near future?

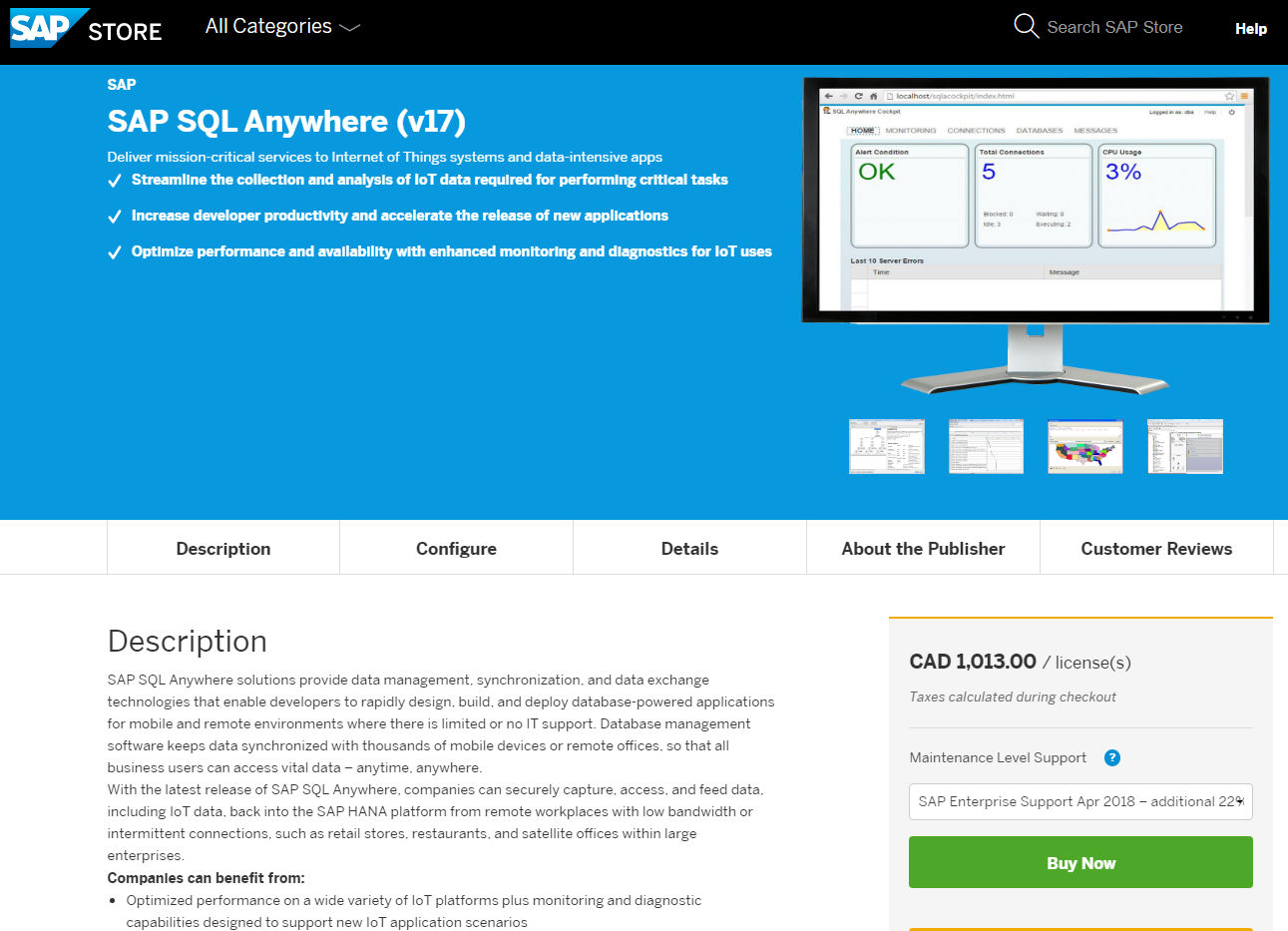

Answer: I believe SQL Anywhere 17 has a long and successful future as an extremely powerful and stable relational database system. There probably won't be too many (any more?) "RFQ Checkpoint" features any time soon; e.g., no new kitchen-sink-in-the-database features like Java-objects-in-the-database", full-text search, spatial data.

Don't get me wrong, there's a bunch of kitchen-sink features I love; e.g., HTTP, proxy tables, HA, MobiLink, even SQL Remote. My point is, if you have a favorite non-relational, non-SQL feature you'd like stuffed into SQL Anywhere, don't hold your breath. For example, built-in JavaScript charts... but guess what? you can embed Highcharts in SQL Anywhere yourself, and use XMLHttpRequest() to dynamically request database data from the browser.

And if you're looking for further development of the in-memory database feature, or the addition of a columnar data store, well, that'll won't come until we get UltraLite HANA :)

Seriously, the "kitchen-sink" phase is over, SQL Anywhere has entered the "powerful and stable" stage in its life.

Consider this particular Use Case: SQL Anywhere is embedded in the Oracle MICROS RES 3700 Restaurant POS System which is used in hundreds of thousands of bars, restaurants, hotels and other hospitality establishments worldwide.

BTW, Highcharts rocks, so does FreeFind.

Wednesday, November 18, 2020

Foxhound 5 Update 1 Is Now Available

Foxhound is a front-line database monitor dedicated to SAP® SQL Anywhere® . . .

  • Foxhound runs all the time, in production.
  • It keeps watch over your databases and sends alerts when there are problems.
  • It keeps a record of database and connection-level performance data in its own SQL Anywhere database.
  • It lets you scroll and query all the data when you need to fix a problem.

 Foxhound Version 5 Update 1 is Now Available 

Most of the changes in Update 1 are bug fixes with a few minor improvements . . .

. . . but "minor" is in the eye of the beholder; here's a selection:

 What's New in Foxhound 5  What's New in Update 1 

Saturday, October 10, 2020

Best Review Ever

     Re: Questions about Foxhound
   from: Loren Sherman at Healthpointe
     to: Breck Carter at gmail
   date: Oct 9, 2020, 12:26 PM

This must be the most complete set of answers I ever received from anyone on anything in any universe. Thank you!!

Tuesday, March 3, 2020

Inside Foxhound: String De-Duplication

String de-duplication is the replacement of multiple duplicate string values with a single copy to save space.

Foxhound 5 uses custom code to implement de-duplication of two columns in the database, and this sometimes results in the database file being 50% smaller than in Foxhound 4.

This article shows

  • how existing Foxhound code was changed to implement string de-duplication, and

  • how concurrency problems were handled to prevent performance problems.
SELECT Changes
INSERT Changes
DELETE Changes
Final Thoughts: Is This For You?


The strings of interest are the Last Statement and Last Plan Text fields on the Foxhound Monitor and Sample History pages:
In Foxhound 4 they're stored in this table:
CREATE TABLE DBA.rroad_group_2_property_pivot (
   sampling_id                                     UNSIGNED INT NOT NULL,
   sample_set_number               /* PK      X */ UNSIGNED BIGINT NOT NULL,
   connection_number               /* PK        */ BIGINT NOT NULL,
   LastStatement                                   LONG VARCHAR NULL,
   LastPlanText                                    LONG VARCHAR NULL DEFAULT '',
      connection_number ) );
In Foxhound 5 they've been replaced by two unsigned integers:
CREATE TABLE dba.rroad_group_2_property_pivot (
   sampling_id                                         UNSIGNED INT NOT NULL,
   sample_set_number                   /* PK      X */ UNSIGNED BIGINT NOT NULL,
   connection_number                   /* PK        */ BIGINT NOT NULL,
   LastStatement_id                                    UNSIGNED INT NOT NULL DEFAULT 0,
   LastPlanText_id                                     UNSIGNED INT NOT NULL DEFAULT 0,
      connection_number ) );
The LastStatement_id and LastPlanText_id columns are effectively foreign key columns pointing to a new table (rroad_long_varchar) where the actual LONG VARCHAR values are stored:
CREATE TABLE dba.rroad_long_varchar (
   long_varchar_id   /* PK        */ UNSIGNED INT NOT NULL DEFAULT autoincrement,
   reference_count                   BIGINT NOT NULL,
   long_varchar      /*       U   */ LONG VARCHAR NOT NULL,
   PRIMARY KEY ( long_varchar_id ) );

CREATE UNIQUE INDEX ux_long_varchar ON dba.rroad_long_varchar ( long_varchar );
The UNIQUE INDEX has two purposes: first, it guarantees there are no duplicates, and second, it supports the SELECT WHERE rroad_long_varchar.long_varchar = @new_long_varchar clause used in a later section.

SELECT Changes

In Foxhound 5 the adhoc view sample_connection has been modified to return the same result set as in Foxhound 4. In other words, even though the underlying rroad_group_2_property_pivot table no longer contains LastStatement and LastPlanText, those columns do appear in the view.

Here's how:

In Foxhound 4 the view is a simple "SELECT everything from the base table"
create VIEW sample_connection AS
  FROM rroad_group_2_property_pivot;
whereas Foxhound 5 uses joins to turn LastStatement_id and LastPlanText_id into the original LastStatement and LastPlanText:
create VIEW sample_connection AS
SELECT rroad_group_2_property_pivot.sampling_id,
       rroad_group_2_property_pivot.sample_set_number, -- PRIMARY KEY
       rroad_group_2_property_pivot.connection_number, -- PRIMARY KEY
       rroad_LastStatement.long_varchar   AS LastStatement,
       rroad_LastPlanText.long_varchar    AS LastPlanText,
  FROM rroad_group_2_property_pivot
                      FROM rroad_long_varchar
                  ) AS rroad_LastStatement
               ON rroad_LastStatement.long_varchar_id = rroad_group_2_property_pivot.LastStatement_id
                      FROM rroad_long_varchar
                  ) AS rroad_LastPlanText
               ON rroad_LastPlanText.long_varchar_id = rroad_group_2_property_pivot.LastPlanText_id
Foxhound itself uses the same joins to display LastStatement and LastPlanText on the Monitor and History pages.

INSERT Changes

When the Foxhound sampling process inserts a connection sample, it calls a function to convert the SQL Anywhere LastStatement and LastPlanText properties into unsigned integers:
INSERT rroad_group_2_property_pivot (
SELECT @sampling_id,
       rroad_get_long_varchar_id ( LastStatement ),
       rroad_get_long_varchar_id ( LastPlanText ),
  FROM ...
Here's that function:
CREATE FUNCTION rroad_get_long_varchar_id (
   IN @long_varchar        LONG VARCHAR,
   IN @is_recursive_call   VARCHAR ( 1 ) DEFAULT 'N' )

DECLARE @new_long_varchar              LONG VARCHAR;
DECLARE @existing_long_varchar_id      UNSIGNED INTEGER;
DECLARE @existing_long_varchar         LONG VARCHAR;
DECLARE @sqlstate                      VARCHAR ( 5 );
DECLARE @errormsg                      VARCHAR ( 32767 );
DECLARE @sqlcode                       INTEGER;
DECLARE @diagnostic_location           VARCHAR ( 20 );
DECLARE @v_existing_long_varchar_id    VARCHAR ( 128 );

SET @new_long_varchar = TRIM ( COALESCE ( @long_varchar, '' ) );

IF @new_long_varchar = '' THEN
   RETURN 0;
The following section checks if the LONG VARCHAR value has already been stored in the rroad_long_varchar table.
   SET @existing_long_varchar_id = NULL;

   SELECT rroad_long_varchar.long_varchar_id
     INTO @existing_long_varchar_id
     FROM rroad_long_varchar
    WHERE rroad_long_varchar.long_varchar = @new_long_varchar;

   IF @existing_long_varchar_id IS NOT NULL THEN
At this point @existing_long_varchar_id is ready to be returned to the caller because it points to the LONG VARCHAR value that already exists in rroad_long_varchar...

...but first, some bookkeeping is necessary.

The Foxhound purge process must know when it's safe to delete old LONG VARCHAR values, and it does this by checking that rroad_long_varchar.reference_count is zero.

The following code increments the reference_count by 1 each time a new reference is encountered, or rather, it attempts to increment the reference count:
      BEGIN -- handle exception


         UPDATE rroad_long_varchar
            SET reference_count = reference_count + 1
          WHERE long_varchar_id = @existing_long_varchar_id;

It is possible that multiple almost-simultaneous calls to this function can reach this point with same LONG VARCHAR value; i.e., Foxhound can sample up to 100 target databases in parallel, and it's possible for the same LastStatement and LastPlanText values could be received from multiple targets.

When that happens, the above UPDATE can fail with SQLCODE -210 Row locked, -306 Deadlock detected, or -307 All threads are blocked.

Rather than have these collisions cause waits or rollbacks, BLOCKING = 'OFF' is used to force all collisions to raise exceptions (even row locks), and those exceptions are all handled by the next section of code which defers the incrementing of reference_count until later.

         SELECT SQLCODE INTO @sqlcode;


         IF @sqlcode IN ( -210, -306, -307 ) THEN

            -- Defer the UPDATE until later.

            INSERT rroad_long_varchar_deferred_increment ( long_varchar_id )
            VALUES ( @existing_long_varchar_id );
In the grand scheme of things, incrementing reference_count is very low priority; it is much more important for Foxhound sampling to proceed without delay.

Here's the table used by the above INSERT; each row represents one deferred reference_count increment of +1 for one long_varchar_id:
CREATE TABLE rroad_long_varchar_deferred_increment (
   long_varchar_id            UNSIGNED INTEGER NOT NULL );
These deferrals are indefinite; the rows inserted in this table aren't needed until the Foxhound purge process is ready to delete unused rows in rroad_long_varchar.

            -- Let the outer block handle the exception.


         END IF;

      END; -- handle exception

      RETURN @existing_long_varchar_id;
The above RETURN finishes handling a matching row in the rroad_long_varchar table.

The next section handles a new LONG VARCHAR value by inserting a new row in rroad_long_varchar:
   ELSE -- @existing_long_varchar_id IS NULL

      BEGIN -- handle exception

         INSERT rroad_long_varchar (
            long_varchar )
         VALUES (
            @new_long_varchar );
It is also possible that multiple almost-simultaneous calls to this function can reach this point with same LONG VARCHAR value.

When that happens, the first execution of the above INSERT statement will work and later executions will (correctly) fail with SQLCODE -196 Index 'ux_long_varchar' for table 'rroad_long_varchar' would not be unique.

The resulting exceptions are handled in the next section, by using recursive calls to this function to handle duplicate LONG VARCHAR values.

The recursive calls will ( should :) work because they won't ( shouldn't :) reach this section of code.

           INTO @sqlcode, @sqlstate, @errormsg;

         IF @sqlcode = -196 THEN -- Index 'ux_long_varchar' for table 'rroad_long_varchar' would not be unique

            IF @is_recursive_call = 'N' THEN

               -- Try a recursive call, and this time @existing_long_varchar_id IS NOT NULL.

               RETURN rroad_get_long_varchar_id ( @new_long_varchar, 'Y' );


               -- This is already a recursive call, and it is still failing.

               CALL rroad_exception ( STRING (
                  @diagnostic_location, '(454eh1) Unexpected error in recursive call to rroad_get_long_varchar_id: ',
                  ' SQLCODE = ', @sqlcode,
                  ', SQLSTATE = ', @sqlstate,
                  ', ERRORMSG() = ', @errormsg ) );


            END IF;


            -- Let the outer block handle the exception.


         END IF;

      END; -- handle exception


   END IF;



DELETE Changes

In Foxhound 4, deleting old values of LastStatement and LastPlanText was easy: just DELETE the rroad_group_2_property_pivot rows holding those values.

In Foxhound 5, LastStatement and LastPlanText are stored in rroad_long_varchar, and those rows can't be deleted until rroad_long_varchar.reference_count sinks to zero.

That happens when enough rows in rroad_group_2_property_pivot are deleted to fire the following trigger enough times to force the reference_count down to zero:
CREATE TRIGGER trd_rroad_group_2_property_pivot
   BEFORE DELETE ON rroad_group_2_property_pivot
   REFERENCING OLD AS old_rroad_group_2_property_pivot

   -- Decrement rroad_long_varchar.reference_count as necessary.

   IF old_rroad_group_2_property_pivot.LastStatement_id > 0 THEN
      UPDATE rroad_long_varchar
         SET rroad_long_varchar.reference_count = rroad_long_varchar.reference_count - 1
       WHERE rroad_long_varchar.long_varchar_id = old_rroad_group_2_property_pivot.LastStatement_id;
   END IF;

   IF old_rroad_group_2_property_pivot.LastPlanText_id> 0 THEN
      UPDATE rroad_long_varchar
         SET rroad_long_varchar.reference_count = rroad_long_varchar.reference_count - 1
       WHERE rroad_long_varchar.long_varchar_id = old_rroad_group_2_property_pivot. LastPlanText_id;
   END IF;

Note that it is possible for reference_count to sink below zero when rows are held in the rroad_long_varchar_deferred_increment table.

The following code shows what happens in the Foxhound purge process after old rows in rroad_group_2_property_pivot have been deleted, and it is time to consider deleting old rows in rroad_long_varchar.

The first section applies the deferred increments to the reference_count so the second section won't delete any rows in rroad_long_varchar that are still needed.

Note that rows in the rroad_long_varchar_deferred_increment table are deleted as soon as they are used.
FOR f_fetch_deferred_increment AS c_fetch_deferred_increment INSENSITIVE CURSOR FOR
SELECT rroad_long_varchar_deferred_increment.increment_id    AS @increment_id,
       rroad_long_varchar_deferred_increment.long_varchar_id AS @long_varchar_id
  FROM rroad_long_varchar_deferred_increment

   -- Apply and delete the deferred increment as an atomic operation.


      UPDATE rroad_long_varchar
         SET rroad_long_varchar.reference_count = rroad_long_varchar.reference_count + 1
       WHERE rroad_long_varchar.long_varchar_id = @long_varchar_id;

      DELETE rroad_long_varchar_deferred_increment
       WHERE rroad_long_varchar_deferred_increment.increment_id = @increment_id;


The second section takes care of deleting rroad_long_varchar rows that are no longer referenced.

Note that up to 100 Foxhound sampling process could be inserting data while the purge is running, and any one of them could insert new rows in rroad_long_varchar_deferred_increment; that's the reason for the AND NOT EXISTS predicate in the following FOR loop:
FOR f_long_varchar AS c_long_varchar NO SCROLL CURSOR FOR
SELECT rroad_long_varchar.long_varchar_id   AS @long_varchar_id
  FROM rroad_long_varchar
 WHERE rroad_long_varchar.reference_count <= 0
   AND rroad_long_varchar.long_varchar_id > 0 -- don't delete empty row
   AND NOT EXISTS ( SELECT *                  -- don't delete rows that have deferred increments
                      FROM rroad_long_varchar_deferred_increment
                     WHERE rroad_long_varchar_deferred_increment.long_varchar_id
                         = rroad_long_varchar.long_varchar_id )
 ORDER BY rroad_long_varchar.long_varchar_id

   DELETE rroad_long_varchar
    WHERE CURRENT OF c_long_varchar;


Final Thoughts: Is This For You?

Before implementing string de-duplication in your application, run a test to remove duplicates to see if the savings are worthwhile.

String de-duplication is worthwhile in Foxhound because a very large number of identical LONG VARCHAR strings are stored in the database. In other applications, where there are fewer duplicates and/or shorter strings, the advantage might not be so great, and alternatives like COMPRESS() might be better.

Your application may already be taking advantage of the "Blob Sharing" feature built in to SQL Anywhere even though it "only occurs when you set values of one column to be equal to those of another column".
In other words, blob sharing only works when your application explicitly creates identical copies (UPDATE t column1 = column2) and it has no effect when your application creates new values separately with no reference to previous identical values.
In Foxhound the code which searches for an existing string value uses a brute-force string comparison "WHERE rroad_long_varchar.long_varchar = @new_long_varchar" supported by an index
CREATE UNIQUE INDEX ux_long_varchar ON dba.rroad_long_varchar ( long_varchar );
but that might not perform well when dealing with giant LONG BINARY values. Although it wasn't the case with Foxhound, you may find an alternative method (e.g., comparing HASH() values) will perform better.

The special exception handling might not be necessary for applications where collisions are unlikely; i.e., in other applications it might be OK to block and wait.

String de-duplication didn't add much runtime overhead to Foxhound, but performing de-duplication on a large existing database can take a very long time; e.g., it can add hours to the process of upgrading a Foxhound 4 database to Foxhound 5.

Friday, February 28, 2020

Dealing With Out-Of-Date Peaks

The Foxhound "Peaks since" line lets you jump directly to the most extreme value of each performance statistic on the History page; e.g., 28 Unsch Req, 79 blocked connections, 100% CPU and so on:

Over time, however, the Peaks line can become out-of-date when the Foxhound purge deletes old samples.

For example, after the Purge deleted the sample with 28 Unsch Req, the Peaks line still showed that value but you could no longer click on it:
Foxhound 5 now lets you refresh the Peaks line by calling the new rroad_recalculate_peaks() stored procedure.

The rroad_recalculate_peaks() procedure updates all the out-of-date peaks with clickable values; e.g.,13 Unsch Req:
Tip: You must use the new shortcut Foxhound5 - 11 Admin Update via ISQL to call rroad_recalculate_peaks(). The default password is SQL, but you can change that; see this topic in the Help.

Wednesday, February 26, 2020

DIY CREATE VIEW Statements In Foxhound 5

Open access is a hallmark of Foxhound:

Foxhound provides read-only SQL access to all the historical data pertaining to your database: it's your data, you own it.
Foxhound Version 5 extends that to include CREATE VIEW and other DDL statements; here's what you can and cannot do:
      no  CREATE EVENT
      no  CREATE FUNCTION [External call]
 yes      CREATE INDEX
      no  CREATE PROCEDURE [External call]
 yes      CREATE TABLE
      no  CREATE USER
 yes      CREATE VARIABLE [Connection-scope]
      no  CREATE VARIABLE [Database-scope]
 yes      CREATE VIEW
 yes      DELETE
 yes      INSERT
 yes      SELECT
 yes      TRUNCATE
 yes      UNLOAD
 yes      UPDATE

    Note that DELETE, INSERT, TRUNCATE and UPDATE statements
         are allowed, but they'll only work on tables you create,
         not the pre-existing Foxhound tables.

For Example: Active Alerts

There are two definitions for "Active Alert":
  1. An Alert that is currently active, and

  2. an Alert that was active at some earlier point in time.
Adhoc queries for the first kind are easy; there's a column for that:
  FROM alert
 WHERE alert_is_clear_or_cancelled = 'N'
   AND sampling_id = 3;
Foxhound 5 displays the second kind in the new scroll to Active Alert drop-down shown in this earlier blog post:
Here's prototype query for the same thing, using a proposed view named "active_alert":
SELECT alert_number,
  FROM active_alert
 WHERE sampling_id       = 3
   AND sample_set_number = 2726
 ORDER BY alert_occurrence DESC;

alert_number alert_title
------------ -------------------------
            1 Database unresponsive
           16 I/O operations
           13 File fragmentation

Do-It-Yourself: CREATE VIEW ADHOC.active_alert

With Foxhound 5 you can now CREATE your own views:
SELECT sample_header.sampling_id,
       LEFT ( alert_title.alert_title, 25 ) AS alert_title,
  FROM sample_header
          LEFT OUTER JOIN active_alert_range
                       ON active_alert_range.sampling_id                       =  sample_header.sampling_id
                      AND active_alert_range.active_locator_number             <= sample_header.sample_set_number
                      AND active_alert_range.clear_or_cancelled_locator_number >  sample_header.sample_set_number
          LEFT OUTER JOIN alert
                       ON alert.alert_occurrence = active_alert_range.active_locator_number
          LEFT OUTER JOIN alert_title
                       ON alert_title.alert_number = alert.alert_number;
The Foxhound drop-down list box uses a query like this to display first two columns, and it also uses the third column (alert_occurrence) to implement the "scroll to Active Alert" feature:
SELECT alert_number,
  FROM active_alert
 WHERE sampling_id       = 3
   AND sample_set_number = 2726
 ORDER BY alert_occurrence DESC;

alert_number alert_title                   alert_occurrence
------------ ------------------------- --------------------
          13 File fragmentation                        2703
          16 I/O operations                            2441
          13 File fragmentation                         155
For example, when the user clicks on "#16 I/O operations" the History page is scrolled to the Alert #16 on line 2441:
When you use active_alert in your own adhoc queries, you have access to several columns including clear_or_cancelled_locator_number which tells you when (and if) each Alert became inactive.

Here's what the whole result set looks like:
  FROM active_alert
 WHERE sampling_id       = 3
   AND sample_set_number = 2726
 ORDER BY alert_occurrence DESC;

sampling_id    sample_set_number     alert_occurrence alert_number alert_title               clear_or_cancelled_locator_number
----------- -------------------- -------------------- ------------ ------------------------- ---------------------------------
          3                 2726                 2703            1 Database unresponsive                                  2745
          3                 2726                 2441           16 I/O operations                                         2830
          3                 2726                  155           13 File fragmentation                                     2829
The active_alert view is based on several views built-in to Foxhound:
active_alert_range   One row per alert containing from and to locator numbers and timestamps for
                        the range of lines in the History page for which this Alert was active.
alert                One row per alert.
alert_cancelled      One row per alert cancellation; indirectly referenced by active_alert_range.
alert_title          One row for the text title corresponding to each Alert number.
all_clear            One row per alert all-clear; indirectly referenced by active_alert_range.
sample_header        One row for each sample recorded by the Foxhound Database Monitor,
                        holding various server and database-level properties and computed columns.
For more information about writing and running adhoc SQL in Foxhound 5, see this chapter in the Help.

Friday, February 21, 2020

Scrolling to Active Alerts in Foxhound 5

Alerts have always been a big deal in Foxhound... they're the main reason Foxhound sends emails, and they're the main reason people buy Foxhound.

Alerts draw your immediate attention, but they're also important after-the-fact: "When did it happen, and why?"

Prior to Foxhound Version 5 the only way to find Alerts was to click on the Message links on the History page.

Sadly, that means click click clicking through all the mismatches:
Foxhound 5 fixes that by keeping track of Active Alerts, the zero or more Alerts that were in effect (not yet cleared or cancelled) at any particular point in time.

For each row on the History page, the Active Alerts drop-down list box shows you what was in effect:
Now you can click on a link to go to "When did it happen?"

Wednesday, February 19, 2020

The Unexpected Benefits Of Conn Flags Count

Some Foxhound 5 connection flags are more important than others, like #9 - Long uncommitted:

Performance Tip: This Flag is useful if you want to be warned when a single connection is sucking all the air out of the room; i.e., when a long-running transaction has a performed a large amount of work that is not yet committed to the database.
Other connection flags might not be so important, especially if they appear for single connections. For example, Connection Flag #15 - Index add rate might just mean one connection is doing a bit more work than normal.

But what if many connections each have one flag set, or worse, what if many connections have many flags?

That's where Conn Flags Count comes in

At the database sample level, Conn Flags Count is the total number of connection flags set across all connections for one sample; large values will draw your attention to where there may be many bottlenecks:
At the connection level, Conn Flags Count is the number of connection flags set for one connection. You can sort the connections to bring the interesting connections to the top:

Conn Flags Count Was An Afterthought

When the Connection Flags feature was first added to Foxhound 5,
  • the flags_set_count column wasn't displayed,

  • then it was displayed in the Connections section because "if it's worth calculating, it's worth showing",

  • then it was made sortable because "if it's worth showing, it's worth sorting",

  • then the Samples & Messages section got its own Conn Flags Count,

  • and the Peaks row got one too:
Now Conn Flags Count has become a valuable feature in its own right.

Monday, February 17, 2020

Mini-Backups in Foxhound 5

Quick! When was the last time you backed up your Foxhound database?

If you answered "never" that's OK, you shouldn't have to... a tool like Foxhound should look after its own backups.

And now Foxhound Version 5 does just that:

Every time you change any options and settings, Foxhound creates a "mini-backup" containing just those options and settings.
Mini-backup files don't take up much space because they don't contain any sample data:

To restore from a Mini-Backup file, click on the Foxhound Windows shortcut 9 Mini-Restore:

The Mini-Restore starts by opening the Activation page on an empty copy of the Foxhound database:

Use Option 2 to pick a mini-backup file and then click on Run Mini-Restore.

The next thing you'll see is sampling up and running again:

All the old monitor samples are gone, but all your intellectual property (the options and settings) has been restored.

For more information see Mini-Backup and Mini-Restore.

Wednesday, February 12, 2020

Read-Only Browser Mode In Foxhound 5

Until now, Foxhound has lacked any form of browser login or authentication...

Anyone who can open Foxhound in a browser can see (and do) everything offered by Foxhound.
The SQL Anywhere Monitor requires a user name and password to login but unless you work hard at changing passwords and creating users, it behaves much the same as Foxhound prior to Version 5...
Anyone can use admin / admin to see (and do) everything offered by the SQL Anywhere Monitor.
Foxhound Version 5 now offers a new and different form of browser login. It's called "Administrator Authentication" and it has these characteristics:
  1. It's optional, you can turn it on and off, and the default is "no login required, for anything".

  2. It implements two modes of operation...

    • Read-Only mode allows everyone to see everything but not change anything, and

    • Administrator mode requires a username and password to update Foxhound options and settings.

  3. An unlimited number of browser sessions may use Read-only mode, with no user name or password required.

  4. Only one browser session at a time can use Administrator mode.

  5. A browser session will remain logged in to Administrator mode until

    • the session or cookie times out (default 12 hours),

    • the logged-in user clicks Logout, or

    • some other session logs in to Administrator mode, which silently logs out the session already logged in.

For more information see Administrator Authorization in Foxhound 5.

Monday, February 10, 2020

Server Messages: Another Release-Defining Feature in Foxhound Version 5

From time to time the SQL Anywhere server sends important error, warning and diagnostic messages to three separate destinations:

  • the "server console" window. . . unless that window doesn't exist because the server was started as a Windows service,

  • the text file named in the -o filename.txt option. . . unless that option was omitted from the server startup command line, and

  • result sets returned by sa_server_messages(). . . if you call it.
The capture and display of sa_server_messages() data is one of the features that makes Foxhound 5 stand apart from previous versions.

Foxhound merges server messages and monitor samples in descending order by timestamp, making it easy to see "What else was going on?" at any particular point.

Here's what server messages look like for a secondary (mirror) server that became the primary after a  failover :

Your applications can write their own server messages, and they will appear in the Foxhound Monitor and History pages like this:

1:17:09 PM          -- E. ERR message (2ms)
1:17:09 PM          -- W. WARN message (11ms)
1:17:09 PM          -- I. INFO message (1m 53s)
For more information see The Sample History Page - Server Messages.

Thursday, February 6, 2020

Connection Flags: A Release-Defining Feature in Foxhound Version 5

Connection Flags are one of the features that make Foxhound 5 stand apart from previous versions. Connection Flags extend the usefulness of database-level Alerts and Peaks down into the nether regions of individual connections by letting you jump directly to connection samples that exhibit suspicious behavior.

Previously, you could sort connection samples in descending order by CPU time to bring high-CPU connections to the top of the list, and then sort on Transaction Time to see long-running connections at the top, but not both at the same time.

With Connection Flags you can sort on  Conn Flags Count  to see connections with Flag #5 - CPU usage, Flag #3 - Long transaction, and 28 other flags all sorted to the top if the list.

For more information about Connection Flags see section 17. Flag Settings in the Foxhound 5 docs.

Tuesday, February 4, 2020

SQL Anywhere Is NOT Dead

Is SQL Anywhere dead?
Not according to the SAP Store...

Is SQL Anywhere dead?
Not according to SAP support...

Is SQL Anywhere dead?
Not according Novalsys...

Is SQL Anywhere dead?
Not according to Foxhound...

Saturday, February 1, 2020

Top Five Flaws In Foxhound

Do you see anything that looks familiar?

  1. The transaction log is too big!

  2. The database is too big!

  3. The purge doesn't work very well!

  4. There's no Undo for Reset Peaks!

  5. Foxhound emails don't display properly!

1. The transaction log is too big!

"Too big" is too polite a term for a file that fills up the hard drive, and when you run the Purge it grows even bigger!

Foxhound Version 5 solves this problem by adding -m "Truncate Log On Checkpoint" to the dbsrv17 command that starts Foxhound.

Those two little characters "-m" have two huge consequences: First, the transaction log is wiped clean every single time Foxhound takes a checkpoint, and second, you can no longer count on the transaction log being any use at all in a Foxhound database recovery strategy.

If you care about a recovery strategy (and not everyone does) you're left with three choices:
  1. Take the -m back out and go back to however you used to deal with giant Foxhound transaction logs,

  2. rely on full backups and give up on restoring recent changes, or

  3. use the new Mini-Backup and Mini-Restore features to recover Foxhound options and settings... which is (probably) all you need.

Enhancement: The size of the transaction log is automatically limited by the dbsrv17 -m truncate log on checkpoint.
Behavior Change: The transaction log is no longer available for restoring recent changes after restoring a backup.
New Feature: The Mini-Backup process automatically backs up recent changes to Foxhound options and settings.
New Feature: The Mini-Restore process restores your Foxhound options and settings into an empty foxhound5.db.

2. The database is too big!

The Foxhound database file grows at about 100K per monitored connection per hour, which means it gets too big too fast when your database has a lot of connections.

A lot of this space is used by only two columns: Last Statement and Last Plan Text.

Foxhound 5 uses a custom string de-duplication process on these columns to reduce the database size by a lot... sometimes half.
Enhancement: String de-duplication has reduced the size of the Foxhound database file.
Behavior Change: It may take a very long time to upgrade all the data in a very large Foxhound 3 or 4 database.
Behavior Change: The Foxhound database may contain a lot of free space after upgrading a very large database.

3. The purge doesn't work very well!

The original Foxhound Purge process was over-designed, which is a polite way to say it was badly designed.

The Purge process in Foxhound 5 has been completely redesigned and rewritten, with all the stupid useless fancy features removed, and a more aggressive approach taken to its primary purpose... which is to "Delete data!"

You can set up a separate 24x7 schedule for the Purge, and there are special "Hourly" and "Midnight" buttons to make administration easier.

New Feature: The Foxhound purge process is now fast enough to keep up with database growth.
Behavior Change: The "Purge uninteresting connection data" feature has been removed.
Behavior Change: The Purge process no longer forces extra checkpoints while it is running.
Behavior Change: By default the Purge process starts once an hour, on the hour.
Behavior Change: The purge process no longer puts "Older samples purged at" in the History page.
Behavior Change: The Purge process may now delete all samples from a stopped sampling session.
New Feature: The Mini-Backup process automatically backs up recent changes to Foxhound options and settings.
New Feature: The Mini-Restore process restores your Foxhound options and settings into an empty foxhound5.db.

4. There's no Undo for Reset Peaks!

The "Peaks since" line is one of the most useful features in Foxhound. It lets you jump directly to the most extreme value of each performance statistic on the History page; e.g., to the highest CPU usage, largest Unscheduled Requests, highest Disk Reads and so on.

When the Peaks line is no longer meaningful (say, after a server upgrade) the "Reset Peaks" button clears all the values and starts the peak calculation process over again.

But... if you have ever pressed Reset Peaks by accident you know what "regret" means.

What you want is an "Undo" button; what Foxhound 5 gives you is a "Recalculate Peaks" procedure.

Recalculate Peaks is actually better than Undo: If the old Peaks line contained some values that are now obsolete because the corresponding samples have been deleted, Recalculate Peaks refreshes those values by only looking at samples which still exist.
Enhancement: A procedure to recalculate the "Peaks since" row can be run via ISQL.

5. Foxhound emails don't display properly!

Over the years Foxhound has been plagued by random glitches in the way HTML emails are displayed in Google Mail and other browser-based email clients.

Fixing individual symptoms didn't help because new and different glitches kept cropping up.

To solve this problem once and for all, HTML emails in Foxhound 5 are vastly simplified and the details are delivered as attachments:

New Feature: The Attach files to emails: checkbox has been added to the Monitor Options page.
Enhancement: AutoDrop Notice emails have been enhanced to show connection-level sample data.
Usability Improvement: AutoDropped connection messages now contain links to Connection History pages.
Bug Fix: Alert and AutoDrop emails have been changed to display properly in HTML browsers.

For more information see Foxhound Version 5.

Saturday, January 25, 2020

Foxhound 5 Smoke Testing Underway

So far, so good . . .

Smoke Test Alert Email Setup.txt
Smoke Test Alerts  1 Database unresponsive.txt
Smoke Test CPU High CPU runaway queries.txt
Smoke Test Foxhound As Service.txt
Smoke Test GUI all the installed shortcuts.txt
Smoke Test HA using HASETUP2-V17.txt
Smoke Test HTTPS for Foxhound on browser.txt
Smoke Test Mini-Backup and Mini-Restore.txt
Smoke Test OFSS on remote HA.txt
Smoke Test Target V5 on V6.txt
Smoke Test Targets V6 through V17.txt
Smoke Test Volume 1 Foxhound x 1 target x 1000 conns.txt

\\\\\ DONE TO HERE -- 2020 01 24 - 5.0.5432a - built at 2020 01 24 09:45 in a SQL Anywhere database created at 2020 01 24 09:45

RC49 Smoke Test Activate Upgrade Foxhound3 4386 2G SANITIZED.txt

RC51 Smoke Test Activate Upgrade Foxhound4 4740 unpatched 12G.txt

Monday, January 6, 2020

Regression Testing

Thursday, January 2, 2020

Enhanced User Testing
